MV Series Trucks

The International MV Series

The International MV Series is purpose-built to be out on the highway, at the job site, first on the scene and anywhere else work needs to get done. Its durable, spacious cab is crafted for optimal comfort and control. Its proven Cummins engines are tuned to maximize torque, dependability, and efficiency. The break-away mirrors limit potential damage and the sloped hood helps enhance visibility and safety. The industry-leading intelligence of its Diamond Logic® electrical system is seamlessly integrated to help protect both your crew and your equipment.

MV Series Specifications

GVWR
21,500 – 54,600 lbs
Models/BBC/BA
MV607: 107" BBC, 40" BA
MV60H: 107" BBC, 40" BA (Low Profile)
Cab Configurations
Regular Cab
Extended Cab
Crew Cab
Wheelbase Options
128" – 311"
Axle Configurations
4x2, 6x4
Rear Axle, Single (4x2)
Meritor: 13,500 – 30,000 lbs
Dana Spicer: 13,500 – 30,000 lbs
Rear Axle, Tandem (6x4)
Meritor: 34,000 – 40,000 lbs
Dana Spicer: 40,000 lbs
Front Axle
Meritor: 8,000 – 14,600 lbs. (4x2, 6x4)
Dana Spicer: 8,000 – 14,700 lbs
Hendrickson Steertek: 10,000 - 12,000 lbs
Frames
High-Strength Low-Alloy Steel 50,000 – 80,000 PSI
Heat Treated Alloy Steel 120,000 PSI
Clean CA available for body mounting
Front Suspension
Spring, Parabolic Taper Leaf: 8,000 – 14,700 lbs
Rear Suspension
Spring, Single Vari-Rate: 13,500 – 31,000 lbs
Tandem, 4-Spring Multileaf: 34,000 - 40,000 lbs
IROS Air Suspension available for Single and Tandem Axle
Electrical System
Diamond Logic Electrical System
Alternators: 12 Volt 160 – 325 Amp
Battery Systems: 12 Volt, 2 to 3 Batteries
Headlights: Long Life Halogen, Optional LED
Exhaust System
Single, Horizontal, Aftertreatment Device Frame Mounted Right, Under Cab or Back of Cab, Horizontal or Vertical Tailpipe
Brakes
Hydraulic Disc with Four Channel ABS, Optional Traction Control
Air Brakes with ABS, Optional Traction Control, Optional Electronic Stability Program with Traction Control
Steering
TRW/Ross Power
Sheppard Power
Engines

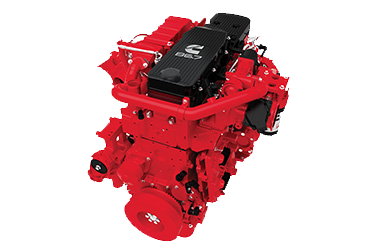

Cummins B6.7: 200 - 360 hp and 520 - 750 lb-ft*

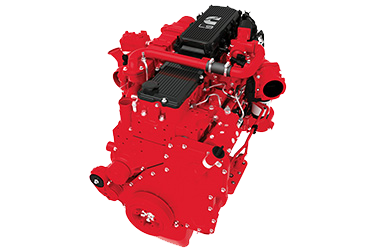

Cummins L9: 260 - 360 hp and 860 - 1,150 lb-ft**
Transmissions
Eaton Fuller: 6, 10 Speed Manual
Allison: 1000, 2000, 3000 Series (HS, EVS, RDS, MH) Automatic
Eaton Fuller: Advantage 10 Speed Fully Automated Manual
Fuel Tank
40 – 140 Gallon Non-Polished and Polished Aluminum, Mounted Right Side, Left Side or Dual Under Cab
DEF Tank
5 - 16.5 Gallon
Tires
Continental, Michelin, Goodyear, Bridgestone, Hankook, Yokohama
