LT™ SERIES

US
Metric

Overview

Strength

GVW
32,000 - 60,000 lbs.

Configurations

Models/BBC/BA
125" BBC/50 BA
Axle Configurations
4x2
6x4
6x2
Cab Interior Trim Levels
CLASSIC TRIM
DIAMOND TRIM
Cab/Sleeper Configurations

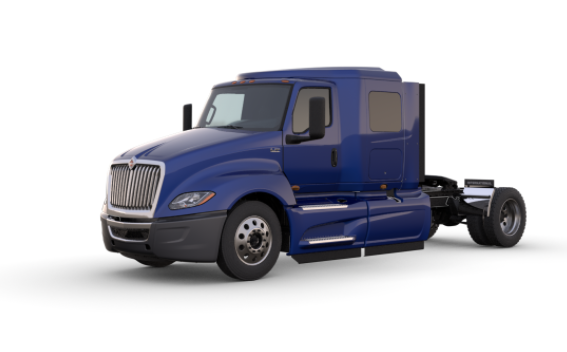

56" Low Roof Sleeper
56" Hi-Rise Sleeper
73" Hi-Rise Sleeper

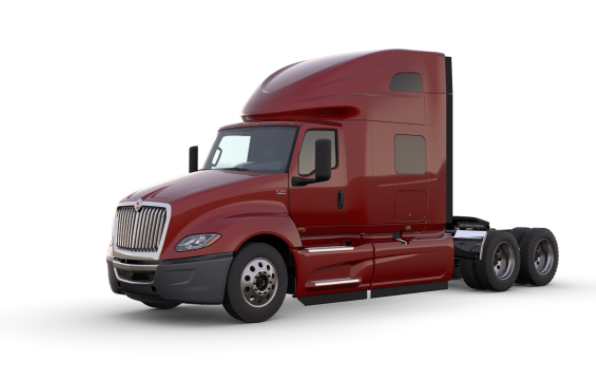

73" Sky-Rise Sleeper
Wheelbase Range
Day Spec
  • 125" BBC
  • 146-226" 4x2
  • 160-252" 6x4
Sleeper Spec
  • 146-226" 4x2
  • 160-252" 6x4

Drivetrain

Frame Rails
Heat-Treated Alloy Steel
120,000 PSI
Front Axles
Hendrickson: 12,000 - 14,000 lbs.
Meritor: 12,000 - 14,000 lbs.
Dana Spicer: 12,000 - 14,000 lbs.
Front Suspensions
Parabolic TaperLeaf: 12,000 - 14,000 lbs.
Spring Monoleaf: 12,000 - 13,200 lbs.
Rear Axles
Single Rear Axle (4x2)
  • Meritor: 23,000 lbs.
  • Dana Spicer: 23,000 lbs.
Tandem Rear Axle (6x4)
  • Meritor: 40,000 - 46,000 lbs.
  • Dana Spicer: 40,000 - 46,000 lbs.
Rear Suspensions
Air Single
  • International®: 20,000 lbs.
  • International : 23,500 lbs. Vari-rate spring
Air Single
  • International : 40,000 lbs.
  • Hendrickson: HTB 40,000 lbs.
  • Hendrickson: HAS 46,000 lbs.
Engines
Cummins X15: 400 – 565 hp and 1,450 – 2,050 lb.-ft. torque
International A26: 370 – 475 hp and 1,350 – 1,750 lb.-ft. torque
Transmissions
Eaton®: 9, 10, 13, 15, 18-Speed Manual
Eaton Cummins SmartAdvantage™ Powertrain: 10-speed Transmission
Eaton Fuller Advantage™ Series: 10-speed
Eaton Ultrashift PLUS: LSE 16-Speed Transmission
Eaton UltraShift® PLUS: 10, 13, 18-Speed Automated Manual
Exhaust Systems
Single canister after-treatment device
Frame Mounted Right Side, Under Cab
Includes Horizontal or Vertical Tailpipe and Guard; Optional Bright Tailpipe and Guard

Other Components

Alternators
Bosch: 12 Volt, 160, 165, 200 Amp.
Leece-Neville: 12 Volt, 160, 210, 240, 325 Amp
Delco Remy: 12 Volt, 164, 200, 300 Amp
Battery Systems
International: 12 Volt 1950 – 3700 CCA
JCI: 12 Volt 2250 – 3000 CCA
Deka: 12 Volt 2800 CCA
Fleetrite®: 12 Volt 2800 - 5600 CCA
Enersys Odyssey: 12 Volt 3450 – 4600 CCA
Tires
Continental
Michelin
Bridgestone
Goodyear
Fuel Tanks
70 – 120 Gallon, Dual, Non-Polished or Polished Aluminum, Mounted Back of Cab
70 – 140 Gallon, Dual, Non-Polished or Polished Aluminum, Mounted Back of Cab
Brakes
Air Drum Brakes with ABS with Optional Automatic Traction Control and Electronic Stability Control
Air Disc Brakes with Automatic Traction Control and Electronic Stability Control
Air Drum Brakes with ABS with Optional Automatic Traction Control and Electronic Stability Control
Power Steering
Sheppard
TRW
