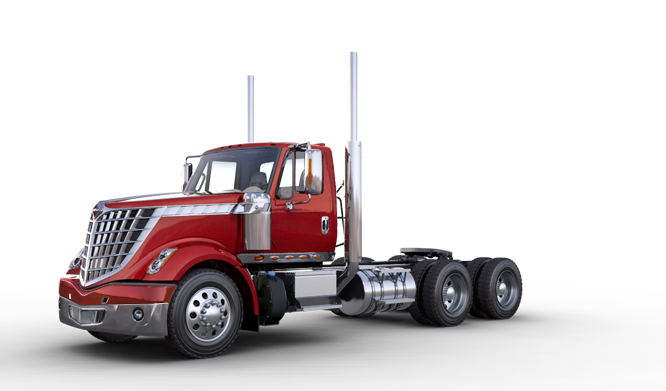

LONESTAR®

US
Metric

Overview

Strength

GCW
90,000 - 140,000 lbs.
GVW
52,350 - 60,600 lbs.

Configurations

Models
BBC 132"
Axle Configurations
6x4 SBA
Cab/Sleeper Configurations
Day Cab
73" Hi-Rise Sleeper
Cab Interior Trim Levels
Standard
Limited
Eagle

Drivetrain

Frame Rails
120,000 PSI Rating
High Strength, Heat Treated Alloy Steel
Front Axles
Dana Spicer: 12,350 - 14,600 lbs.
Hendrickson: 12,350 - 14,600 lbs.
Meritor: 12,350 - 14,600 lbs.
Front Suspensions
Mono-leaf Spring: 12,350 - 13,200 lbs.
Taper leaf Spring: 12,350 - 14,600 lbs.
Rear Axles
Tandem
Meritor: 40,000 - 46,000 lbs.
Dana Spicer: 40,000 - 46,000 lbs.
Rear Suspensions
Air Ride: 40,000 - 46,000 lbs.
Engines
Cummins ISX15: 400 - 600 hp, 1,450 - 2,050 lb.-ft. torque
Transmissions
Eaton Advantage (SmartAdvantage Powertrain Solution): 10-speed
Eaton Manual: 10-speed, 13-speed, 18-speed
Eaton UltraShift+ PLUS Automated Manual 10-speed, 13-speed, 18-speed
Tremec Manual 10-speed
Exhaust Systems
Switchback Horizontal Aftertreatment, Vertical Tail Pipes

Other Components

Electrical Systems
12-Volt
Alternators
160 - 325 Amp.
Battery System
Up to Four Batteries
Headlights
Halogen
Fuel Tanks
140 - 300 Gallon Total Capacity
Brakes
Air Brake With ABS
Steering
Sheppard Power
Ross Power
