HX™ Series

US
Metric

Overview

Strength

GVW Nominal
52000.00 lbs
GVW Maximum
92000.00 lbs

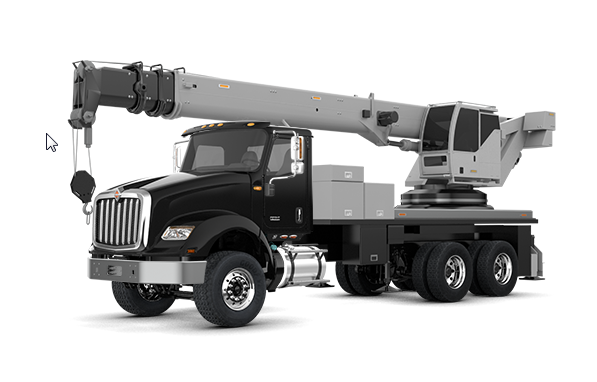

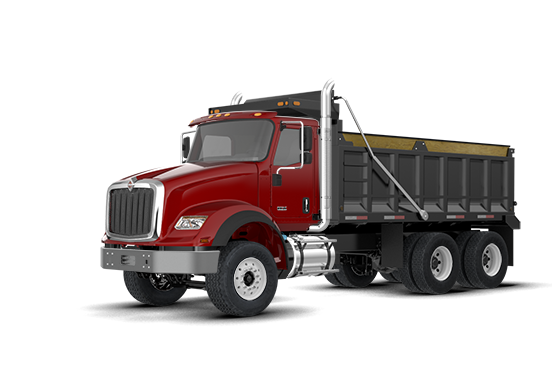

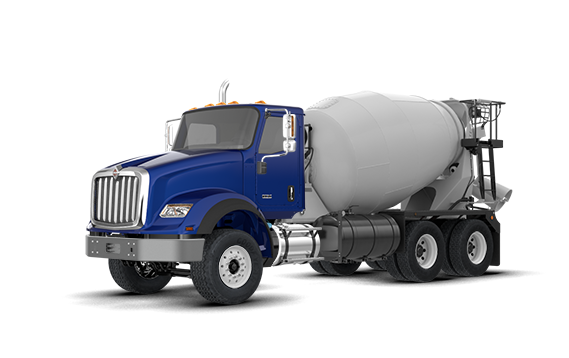

Configurations

Models
HX515 114” BBC, Set-Forward Front Axle Truck
HX615 115” BBC, Set-Back Front Axle Truck or Tractor
HX520 120” BBC, Set-Forward Front Axle Truck or Tractor
HX620 119” BBC, Set-Back Front Axle Truck or Tractor
Axle Configurations
6x4 8x6
Cab Configurations
Day Cab
Cab Interior Trim Levels
Classic
Diamond

Drivetrain

Frame Rails
Heat Treated Alloy Steel
120,000 PSI
Front Axles
HX515 / HX520
  • Dana: 16,000 – 20,000 lbs.
  • Meritor: 12,000 – 20,000 lbs.
HX615 / HX620 SBA
  • Dana: 16,000 – 22,000 lbs.
  • Meritor: 13,200 – 22,000 lbs.
Front Suspensions
HX515 / HX520 SFA
  • Multi-leaf: 20,000 lbs.
  • Parabolic Taper-leaf: 12,000 – 20,000 lbs.
HX615 / HX620 SBA
  • Multi-leaf: 14,000 – 23,000 lbs.
  • Parabolic Taper-leaf: 12,000 – 20,000 lbs.
  • Slipper- Type: 20,000 – 24,000 lbs.
Rear Axles
Tandem
  • Dana: 40,000 – 46,000 lbs. Single and Two Speed
  • Meritor: 40,000 – 70,000 lbs. Single and Double Reduction
Tridem
  • Meritor: 53,000 lbs.
Rear Suspensions
Spring Suspensions
  • Chalmers: 40,000 – 52,000 lbs.
  • Hendrickson HMX: 40,000 lbs. 54", 60", 72", spacing
  • Hendrickson R, RS, RT: 46,000 – 80,000 lbs.
Air Suspensions
  • Hendrickson HAS: 40,000 – 46,000 lbs. 55" and 60" spacing
  • Hendrickson PRIMAAX®: 46,000 – 52,000 lbs. 55", 60", 72”spacing
  • Hendrickson PAX Tridem: 69,000 lbs.
Engines
Navistar N13 13L:
  • 370 – 475hp*, 1,350 – 1,700 lb.-ft.* torque
  • *475hp / 1700 lb.ft. rating HX615 only
Cummins ISX15 15L:
  • 450–600hp, 1,650 – 2050 lb.-ft. torque
Transmissions
Eaton Manual: 8LL, 9ALL, 10, 13, 15, 18-speed
Eaton Automated: UltraShift+ PLUS 8LL, 9ALL, 18-speed
Allison Automatic: 4000 Series RDS, EVS, OFS
Exhaust Systems
Switchback After Treatment Device: Single or Dual Vertical Stacks
Vertical After Treatment Device: Single Vertical Stack

Other Components

Electrical Systems
HX Series Electrical System
Alternators
Bosch: 160 – 200 amp.
Delco Remy: 165 – 300 amp.
Leece-Neville: 210 – 240 amp.
Battery System
1,950 - 3,700 CCAs
Headlights
Halogen Headlamps With LED Daytime running Lights and Turn Signals
Fuel Tanks
60 – 240 Gallons, Single or Dual, Polished or Non-Polished
LH Mounted Under Cab or Dual Under Cab or Back of Cab
24" or 26" Diameter
Braking & Control
Traction Control
Electronic Stability Control (ESP)
Bendix® Wingman®*

*Available via custom engineering
